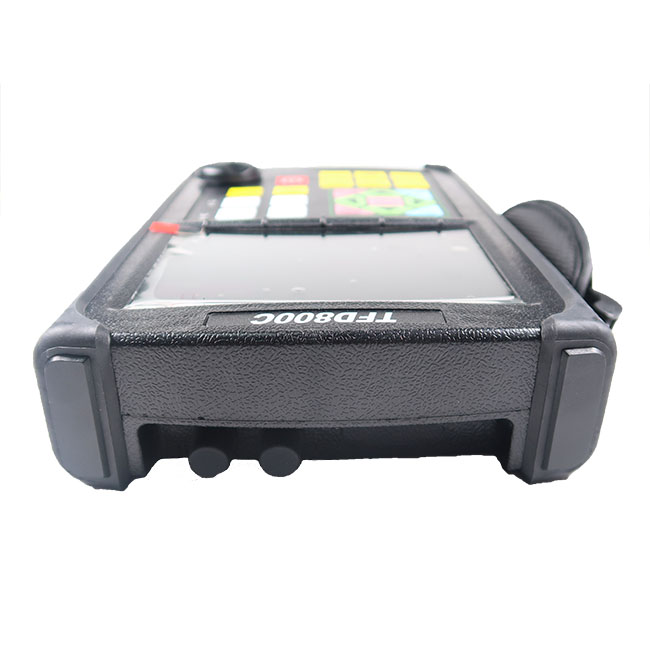

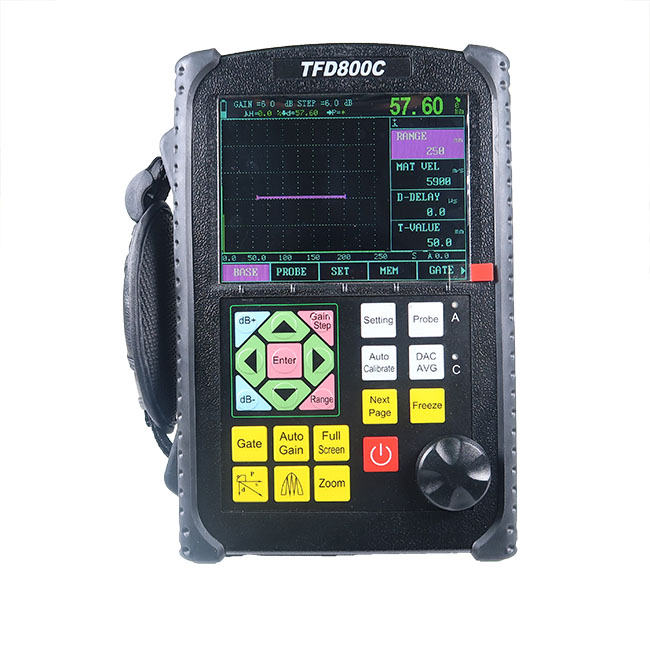

Ultrasonic Flaw Detector TFD800C

Product overview:

USB memory knob digital ultrasonic flaw detector TFD800C mini total 1kg with battery
Simple operation with fast rotary knob adjustments
use in direct sunlight and operation at extreme temperatures…
Product Info
Automated calibration Automated gain

•Automated make video of test process and play

•AWS D1.1,DAC (6dBDAC), AVG, TCG & B scan,28 DGS curves

Pulse can be adjusted by customer

High-speed capture and very low noise

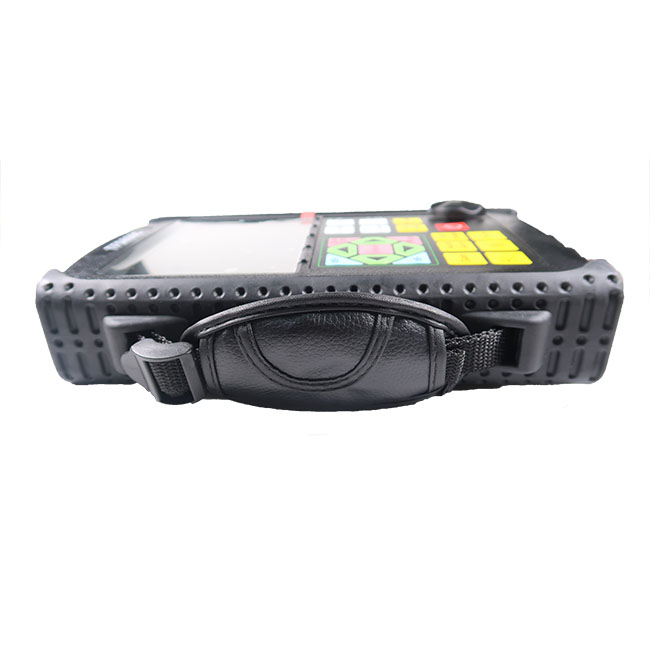

•Solid metal housing (IP65), rubber plastic dust cover included

•High contrast viewing of the waveform from bright

•Powerful pc software and reports can be export to excel

Small size, light weigh model, total 1kg with battery

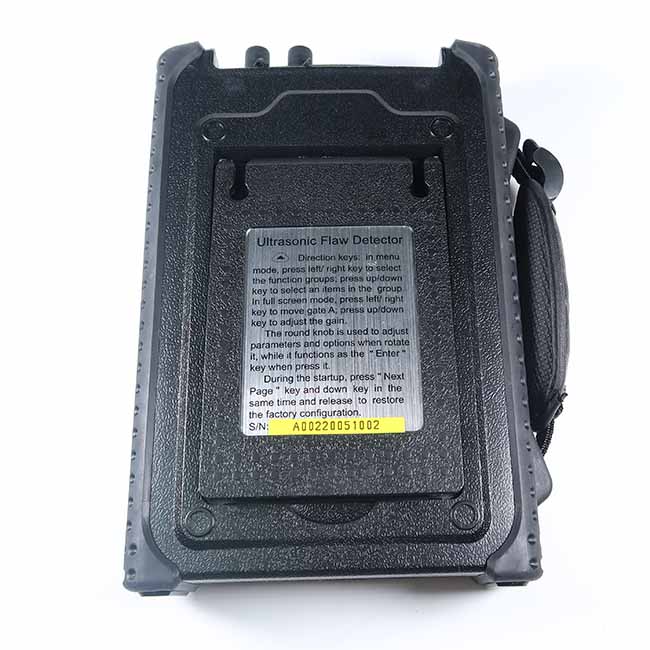

Knob design, fast operation

USB memory stick for no limit data transmission

Features :
•        Automated calibration of transducer, angle, Zero point and Velocity

•        Automated gain,Peak Hold and Peak Memory

•        Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);

•        Automated switch three staff gauge ((Depth d,level p,distance s)

•        100 independence setup, any criterion can be input freely, we can work in the scene without test block

•        Big memory of 1000 A graph

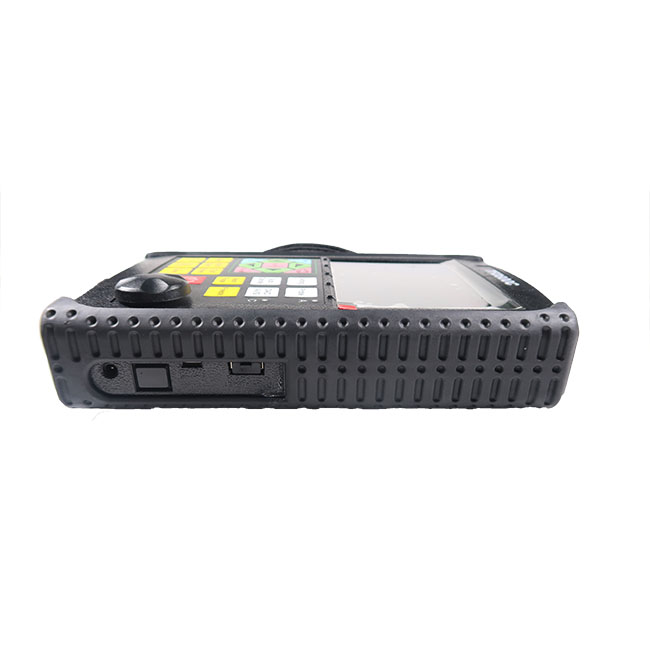

•        RS232/USB 2.0 port,communication with pc is easy

•        The embeded software can be online updated

•        Li battery, continue working time up to 10 hours



Other assistant function

•        Display freeze

•        Automated echo degree

•        Angles and K-value

•        Lock and unlock function of system parameters

•        Dormancy and screen savers

•        Electronic clock calendar

•        Two gates setting and alarm indication

•        High-speed capture and very low noise

•        Automated make video of test process and play, USB memory disk,no limit for video time.


Main Technical Index:

Title

Parameter

Title

Parameter

Measuring Range(mm)

0  10000

Measurement Mode

Single,Dual,Thru

Vertical Linearity Error

≤3%

Reject

0~80%

Horizontal Linearity Error

≤0.1%

Pulse Displacement(μs)

-20  +3400

Sensitivity Leavings

≥62dB

Zero(μs)

0.0  99.99

Pulse Displacement

≥34dB

Port Type

BNC

Resolving Power

≥36

Operating Temperature  ()

-2050

Frequency Range(MHz)

0.5  20

H×W×D(mm)

210×156×40

Gain(dB)

0  120

Weight(kg)

1.0 (with battery)

Material Velocity(m/s)

1000  15000

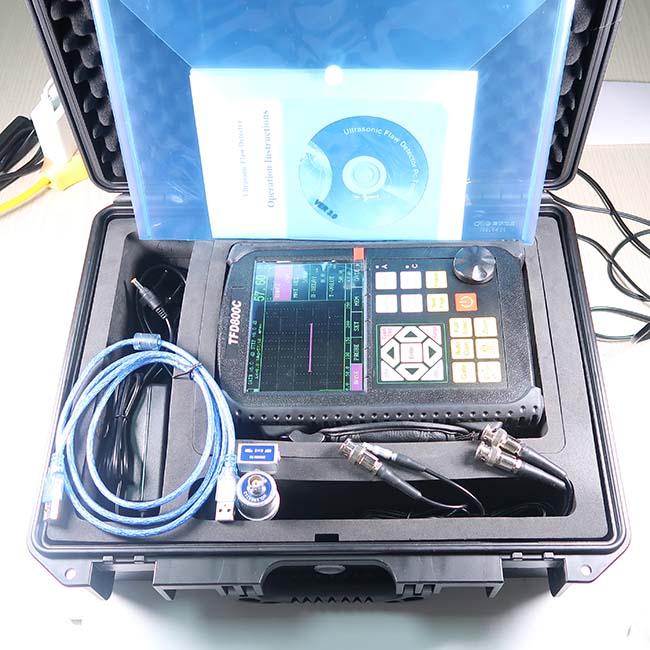

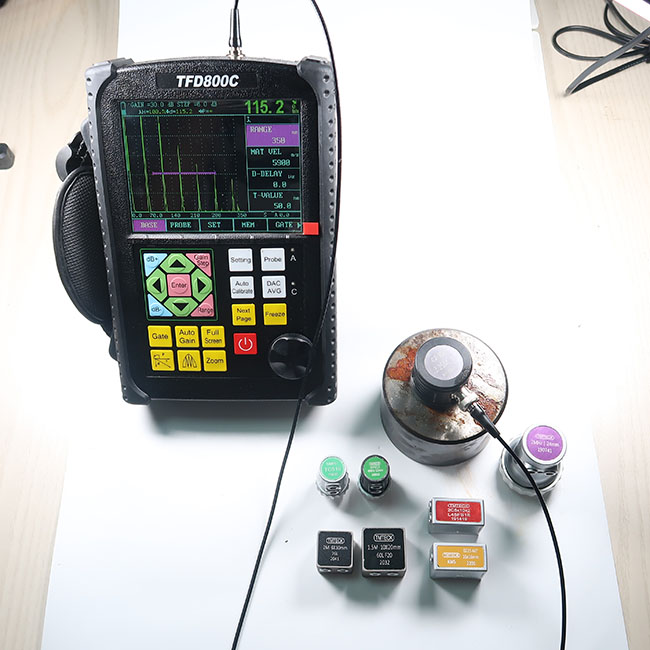

TFD800C Standard Configuration

No.

Item

Quantity

1

Main Body

1

2

Straight Beam Probe

1

3

Angle Probe

1

4

Machine-probe Cable

2

5

Battery Module

1

6

Power Adapter (Charger)

1

7

Manual

1

8

Instrument Case

1

9

Datapro Software

1

10

USB communication Cable

1
