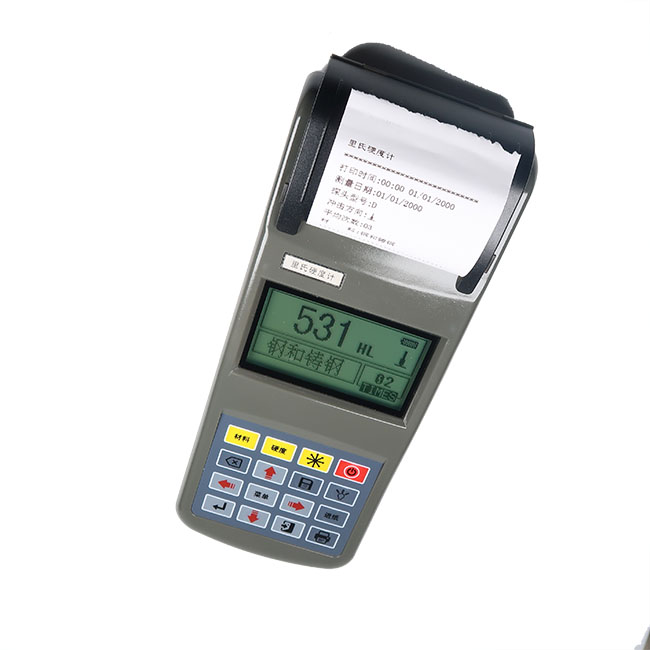

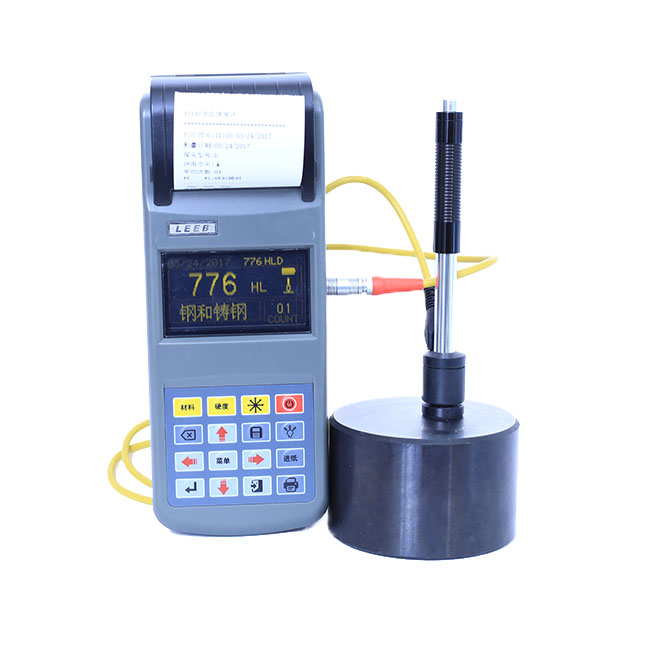

Leeb Hardness Tester THL380

Product overview:

THL380

Based on the principle of Leeb hardness measurement, THL380 portable Leeb hardness tester can measure a variety of metal materials conveniently and quickly, display the hardness measurement value immediately, and convert freely between different hardness systems.

Advantages

1、Largest screen OLED screen import from Taiwan(3 inch),it is the highest brightness display in China showing all functions and parameters, easy read and operate,also can save lots of energy .the largest screen of Leeb hardness tester in China.

2、Add four new hardness scales, HRA, HB for D impact device of alloy tool steel; HV for cast aluminum alloy

3、Add New user material function, to meet the need of user can test the special material.

4、Test at any angle, even upside down.

5、Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

6、Seven impact devices are available for special application. Automatically identify the type of impact devices.

7、Large capacity memory could store 600 groups (Relative to average times321 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

8、Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

9、Battery information indicates the rest capacity of the battery and the charge status.

10、User calibration function.

11、USB port with the PC humanity multi-functions data proceeding software.

12、Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

13、Li rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

14、Auto power off to save energy.

15、Excellent after-sale service system for high quality products---3 years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Standard according including: national standard: GB/T 17394.1-2014; GB/T1172-1999

EU standard: EN ISO 16859-2016

ASTM standard: ASTM A956(2012)

Main Application

1、Die cavity of molds

2、Bearings and other parts

3、Failure analysis of pressure vessel, steam generator and other equipment

4、Heavy work piece

5、The installed machinery and permanently assembled parts

6、Testing surface of a small hollow space

7、Material identification in the warehouse of metallic materials

8、Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

1、Measuring rangeHLD170960HLD

2、Measuring direction360°

3、Accuracy:+/- 6 HLD

4、Hardness ScaleHLHBHRBHRCHRAHVHS

5、DisplayOLED screen ,3 inch ,one of the biggest screen in China.

6、Data memory 600 groups max.relative to impact times 321

7、Printing paper: width is 57.5±0.5mm, diameter is 30mm

8、Battery pack: 7.4V Li battery

9、Battery charger: 9V/1A

10、Continuous working periodabout 150 hoursWith backlight off, no printing

11、Communication interfaceUSB1.1

12、Outline dimensions210mm×85mm×35mm

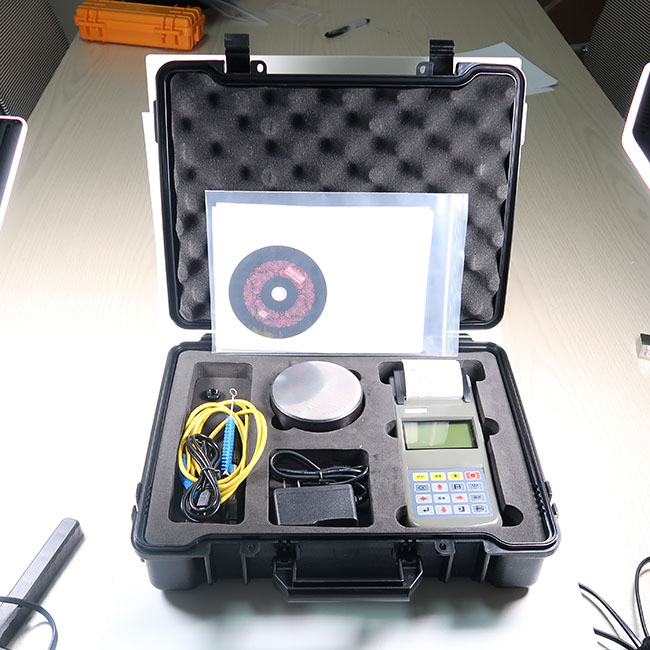

Configuration



No.

Item

Quantity

Remarks

Standard Configuration

1

Main Unit

1



2

D type impact device

1

With cable

3

Standard test block

1



4

Cleaning brush (I)

1



5

Small support ring

1



6

Battery Charger

1

9V 1A

7

Paper for printing

1



8

Manual

1



9

Instrument case

1
