Advantages

1、 Largest screen 3 inch , showing all functions and parameters.it is the largest screen of leeb hardness tester in China , easy read and operate.

2、The best impact device in China we offer ,stable, ageing resistance,through exam ,we can 2 years long time using ,but others can not.

3、Test at any angle, even upside down.

4、Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

5、Seven impact devices are available for special application. Automatically identify the type of impact devices.

6、Large capacity memory could store 600 groups (Relative to average times32～1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

7、Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

8、Battery information indicates the rest capacity of the battery and the charge status.

9、User calibration function.

10、USB port with the PC humanity multi-functions data proceeding software.

11、Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

12、Li rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

13、Auto power off to save energy.

14、Excellent after-sale service system for high quality products---3 years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Standard according including: national standard: GB/T 17394.1-2014; GB/T1172-1999

EU standard: EN ISO 16859-2016

ASTM standard: ASTM A956(2012)

Technical Specifications

1、Measuring range：HLD（170～960）HLD

2、Measuring direction：360 drgree.

3、Hardness Scale：HL,HB,HRB,HRC,HRA,HV,HS

4、Display:3 inch screen ,one of the biggest in China.

5、Data memory： 600 groups max.（relative to impact times 32～1）

6、Printing paper: width is （57.5±0.5）mm, diameter is 30mm

7、Battery pack: 7.4V Li battery

8、Battery charger: 9V/1A

9、Continuous working period：about 150 hours（With backlight off, no printing）

10、Communication interface：USB1.1

11、Outline dimensions：210mm*85mm*35m

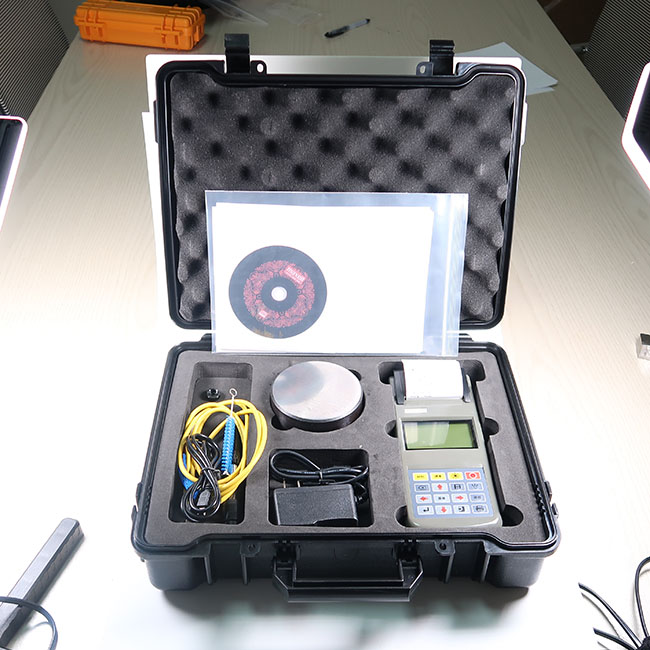

Configuration
