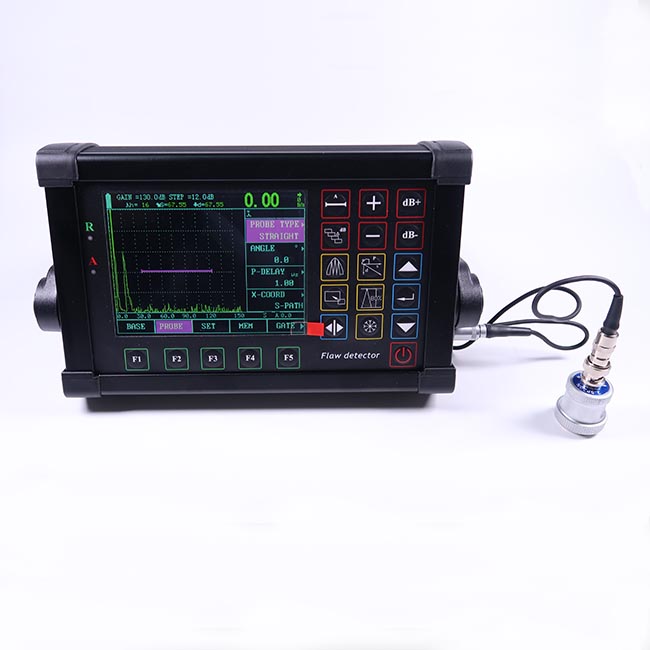

DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector TFD320 for Gate and DAC alarm& 5 MINUTES VIDEO
Product Info:
• Automated calibration Automated gain
• Automated make video of test process and play
• DAC AVG & B scan, AWS function, 6dB DAC
• High-speed capture and very low noise
• Solid metal housing (IP65)
• High contrast viewing of the waveform from bright
• Powerful pc software and reports can be export to excel through RS232/ USB interface
Features :
• Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)
• Automated switch three staff gauge ((Depth d, level p, distance s)
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
• Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compen-sated
• 100 independence setup, any criterion can be input freely, we can work in the scene without test block
• Big memory of 300 A graph and 30000 thickness value
• Automated gain and gain scan
• Automated make video of test process and play
• Peak Hold and Peak Memory
• B scan
• Powerful pc software and reports can be export to excel
• The embeded software can be online updated
• Li battery, continue working time up to 10 hours
Other Assistant Function :
• Display freeze;
• Automated echo degree;
• Angles and K-value;
• Lock and unlock function of system parameters;
• Dormancy and screen savers;
• Electronic clock calendar ;
• Two gates setting and alarm indication;
• Gate and DAC alarm;
Specification :
|
Title |
Parameter |
Title |
Parameter |
|
Measuring Range(mm) |
2.5 ～ 10000 |
Measurement Mode |
Single, Dual, Thru |
|
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
|
Horizontal Linearity Error |
≤0.1% |
Pulse Displacement(μs) |
-20 ～ +3400 |
|
Sensitivity Leavings |
≥62dB |
Zero(μs) |
0.0 ～ 99.99 |
|
Dynamic range |
≥34dB |
Port Type |
BNC |
|
Resolving Power |
≥36dB |
Operating Temperature (℃) |
-20～50 |
|
Frequency Range(MHz) |
0.5 ～ 20 |
H×W×D(mm) |
210×156×40 |
|
Gain(dB) |
0 ～ 110 |
Weight(kg) |
1.0 |
|
Material Velocity(m/s) |
1000 ～ 13000 |
|
|

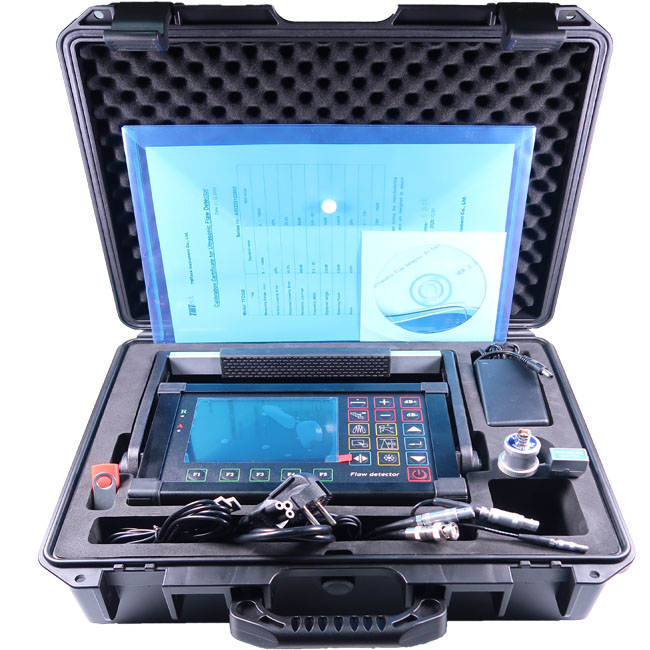

TFD320 Standard Configuration
|
No. |
Item |
Quantity |
|
1 |
Main Body TFD320 |
1 |
|
2 |
Straight Beam Probe |
1 |
|
3 |
Angle Probe |
1 |
|
4 |
Machine-probe Cable |
2 |
|
5 |
Battery Module |
1 |
|
6 |
Power Adapter (Charger) |
1 |
|
7 |
Manual |
1 |
|
8 |
Instrument Case |
1 |
|
9 |
Datapro Software |
1 |
|
10 |
USB communication Cable |
1 |
