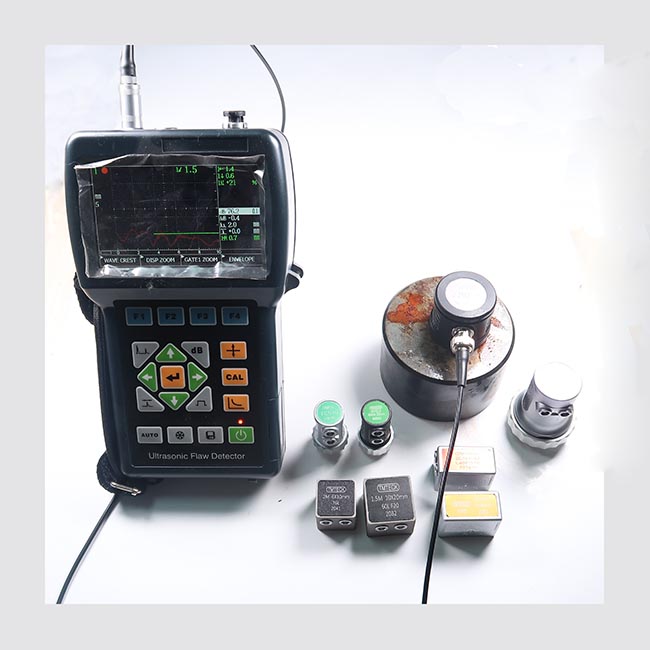

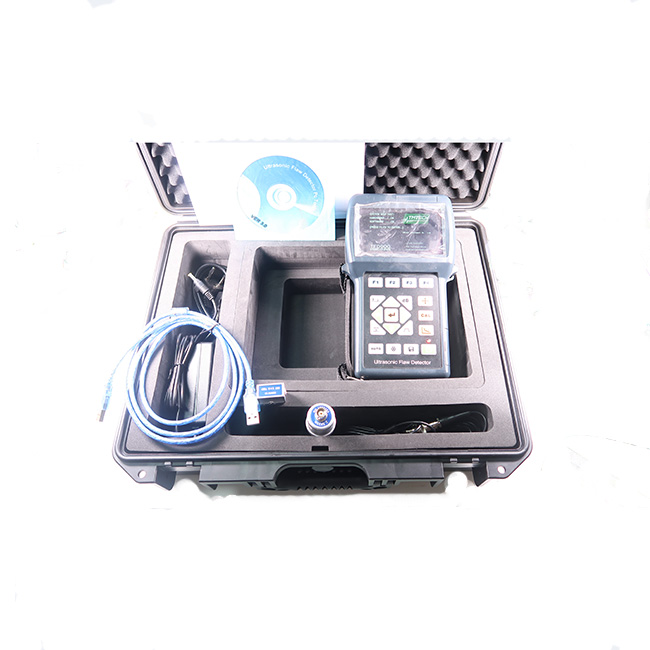

Location： Home > Products > Non-destructive flaw detector > Ultrasonic Flaw Detector
Specification
|
Attenuator Error |
Per 12dB ±1dB |
|
Equivalent Input Noise |
<80×10-9 V/√HZ^ |
|
Pulse Type |
-ve square wave, Tv: 25~250V ; tunable with 25V per step |
|
Working Modes |
T\R ; T&R |
|
Damping |
400\80 Ohm |
|
Working Frequency |
W\N Band, W: 0.5~20MHz; N: 1.5~3MHz |
|
Gain |
0.0~110.0dB; 0.1\1.0\2.0\6.0 dB per step; smart speed-up at 0.1dB
|
|
Material Velocity |
1000～15000m/s tunable; preset 30 frequently-used Vs optional |
|
Display Reachable |
0.0～10000mm LW at steel velocity tunable with min 0.1mm per step
|
|
Rectification |
Positive, Negative, Full, RF (1002plus)
|
|
Gate & Alarm |
Dual gates, hardware driving real-time alarming;Alarming condition: excess\loss\ DAC; Alarm mode: sound ; Spotting: peak
|
|
Display |
TG, TFT 5.6 inch WVGA color display, resolution 800×480 |
|
Pulse Shift Range |
-7.5~3000μs |
|
Probe Delay Available |
0~999.9μs |
|
PRF |
25~800Hz, auto adaptation |
|
Vertical Linearity Error |
≤3% |
|
Horizontal Linearity Error |
≤0.2% |
|
Sensitivity Surplus |
≥60dB (200Φ2 FBH) |
|
Discernibility
|
≥36dB (mated with 5MHzΦ14 transducer) |
|
Dynamic Range |
≥32dB |
|
Rejection |
(0~90) %, without any dent to linearity or gain |
|
NL |
＜10% |
|
Ports |
BNC probe connector ； USB HOST |
|
Power Supply |
Large-capacity Li battery without memory effect; battery life: 8+hrs; In-built battery charger (independent charger optional); AC: 220V
|
|
Dust\Splash\Water Proof |
IP54 |
|
UT Standards |
Compatible with EN12668-1； Meets JB/T 10061-1999 |
|
Ambient Temperature |
-30~50℃ |
|
Relative Humidity |
20%~95% |
|
Weight |
Around 0.9kg (with battery & in-built charger) |
|
Dimension |
Upper Part: 215mm×126mm×53mm； Lower Part: 215mm×104mm×42mm
|
